Thermoplastic Hose
Leaders in High-Pressure Thermoplastic Hoses
As a distributor, we take pride in offering SPIR STAR®’s specialized thermoplastic high-pressure hoses. Our commitment to meeting the diverse and stringent industry demands is reflected in our extensive range of hose types and connections. We ensure that the right solution is readily available for a wide array of applications.
At Spir Star Products, we make your safety our top concern. Our high-pressure hoses meet rigorous quality standards and hold certifications such as DIN EN 1829-2 and ISO 19880-5, ensuring your peace of mind even in high-pressure scenarios.
DIN EN 1829-2
ISO 19880-5
HOSE FITTING
Our comprehensive selection of hose fittings, available in various thread types, sizes, and materials, perfectly complements our thermoplastic hoses, catering to diverse needs such as High Pressure, Medium Pressure, NPT, JIC, BSPP, Type-M, and Metric fittings.
HOSE ACCESSORIES
To enhance the safety and durability of our high-pressure hoses, SPIR STAR® provides a range of fitting hose accessories, including options such as hose protection sleeves, protective tubing, and bend protection.
HOSE PRODUCTS

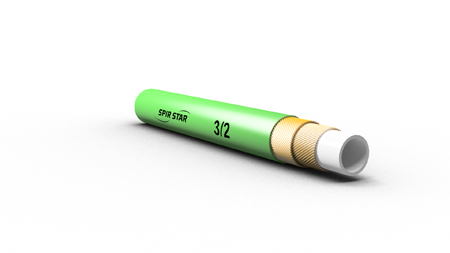

Inner Diameter 3mm Series
Application: Waterblast, Hydraulic
Max. Pressure: 2800 bar (40,600 psi)
Burst Pressure: 7000 bar (101,500 psi)
Inner Diameter 4mm Series
Application: Waterblast, Hydraulic
Max. Pressure: 3200 bar (46,400 psi)
Burst Pressure: 8000 bar (116,000 psi)

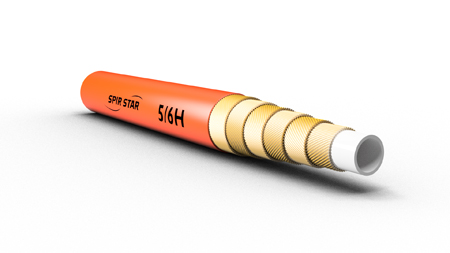

Inner Diameter 5mm Series
Application: Waterblast, Hydraulic, Oil & Gas
Max. Pressure: 4000 bar (58,000 psi)
Burst Pressure: 8000 bar (116,000 psi)

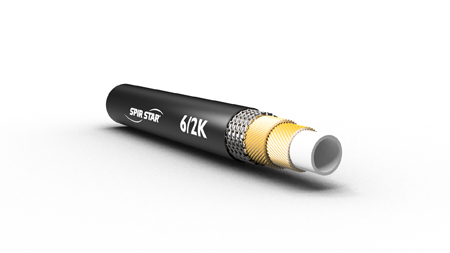

Inner Diameter 6mm Series
Application: Waterblast, Hydraulic, Oil & Gas
Max. Pressure: 3200 bar (46,400 psi)
Burst Pressure: 8000 bar (116,000 psi)
Inner Diameter 8mm Series
Application: Waterblast, Hydraulic, Oil & Gas
Max. Pressure: 3200 bar (46,400 psi)
Burst Pressure: 8000 bar (116,000 psi)
Inner Diameter 10mm Series
Application: Waterblast, Hydraulic, Oil & Gas
Max. Pressure: 3035 bar (44,000 psi)
Burst Pressure: 6100 bar (88,450 psi)

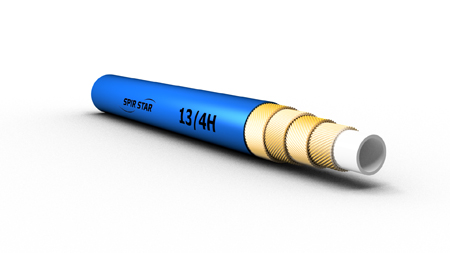

Inner Diameter 13mm Series
Application: Waterblast, Hydraulic
Max. Pressure: 2800 bar (40,600 psi)
Burst Pressure: 7000 bar (101,500 psi)

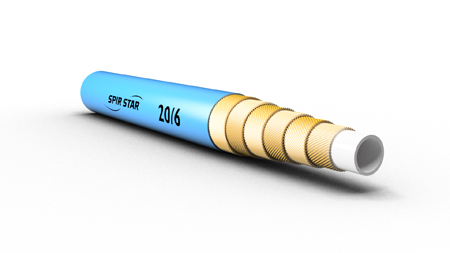

Inner Diameter 16mm Series
Application: Waterblast, Hydraulic, Oil & Gas
Max. Pressure: 2000 bar (29,000 psi)
Burst Pressure: 5000 bar (72,500 psi)
Inner Diameter 20mm Series
Application: Waterblast, Hydraulic, Oil & Gas
Max. Pressure: 1600 bar (23,200 psi)
Burst Pressure: 4000 bar (58,000 psi)

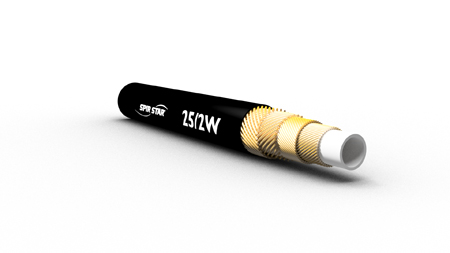

Inner Diameter 25mm Series
Application: Waterblast, Hydraulic, Oil & Gas
Max. Pressure: 1400 bar (20,300 psi)
Burst Pressure: 3000 bar (43,500 psi)

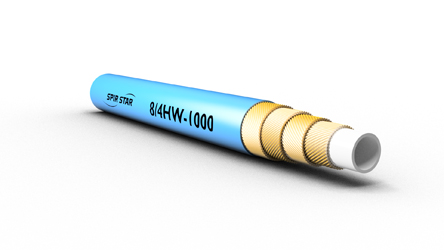

HW Series
For Hot Water
Application: Waterblast
Max. Pressure: 1000 bar (14,500 psi)
Burst Pressure: 3800 bar (55,100 psi)
Max. Temperature: 100 deg C
HL Series
For Hydraulic Line
Application: Hydraulic
Max. Pressure: 1800 bar (26,100 psi)
Burst Pressure: 4500 bar (65,250 psi)
Max Temperature: 60 deg C
M-Series
For Methanol Service, PA11 inner Core, PA outer cover
Application: Hydraulic, Oil & Gas
Max. Pressure: 1035 bar (15,000 psi)
Burst Pressure: 4140 bar (60,000 psi)
PPA Series
For High Chemical Resistant
Application: Hydraulic, Oil & Gas
Max. Pressure: 1035 bar (15,000 psi)
Burst Pressure: 4140 bar (60,000 psi)
Max. Temperature: 80 deg C

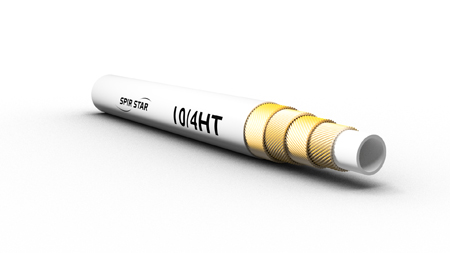

HT Series
For High Chemical Resistant,
Application: Oil & Gas
Max. Pressure: 1035 bar (15,000 psi)
Burst Pressure: 8000 bar (116,000 psi)
Max. Temperature: 100 deg C
Hydrogen Series
For Hydrogen Industry
Application: Oil & Gas, Hydrogen
Max. Pressure: 962,5 bar (13,956 psi)
Burst Pressure: 3850 bar (55,825 psi)
Max. Temperature: 85 deg C

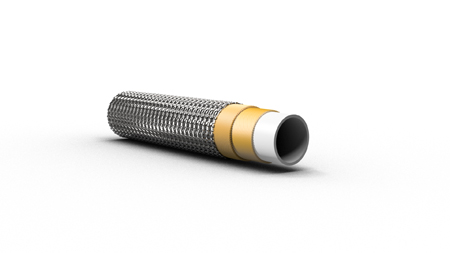

KF Series
Application: Automotive
Max. Pressure: 500 bar (7250 psi)
Burst Pressure: 2000 bar (29,000 psi)
Max. Temperature: 200 deg C
